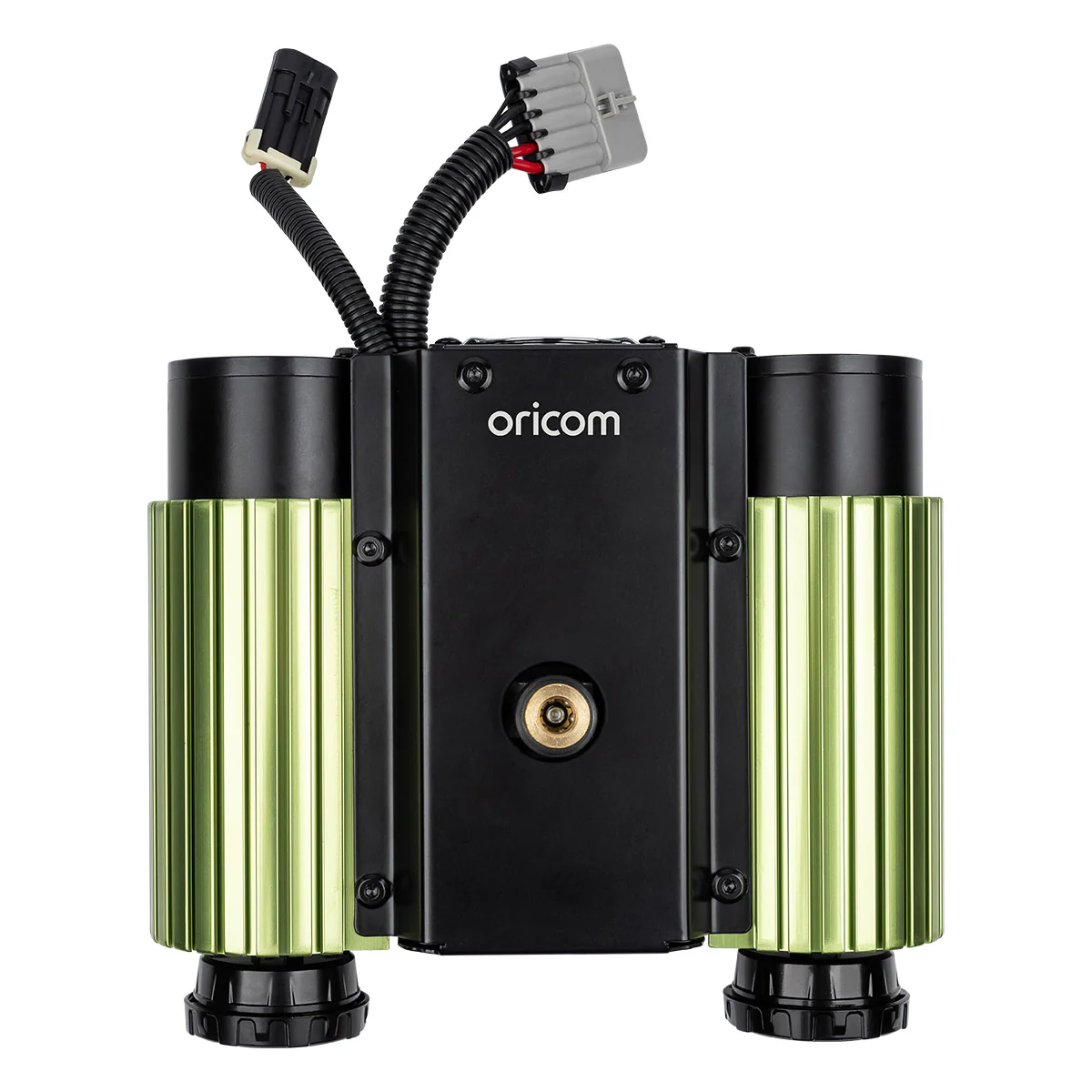

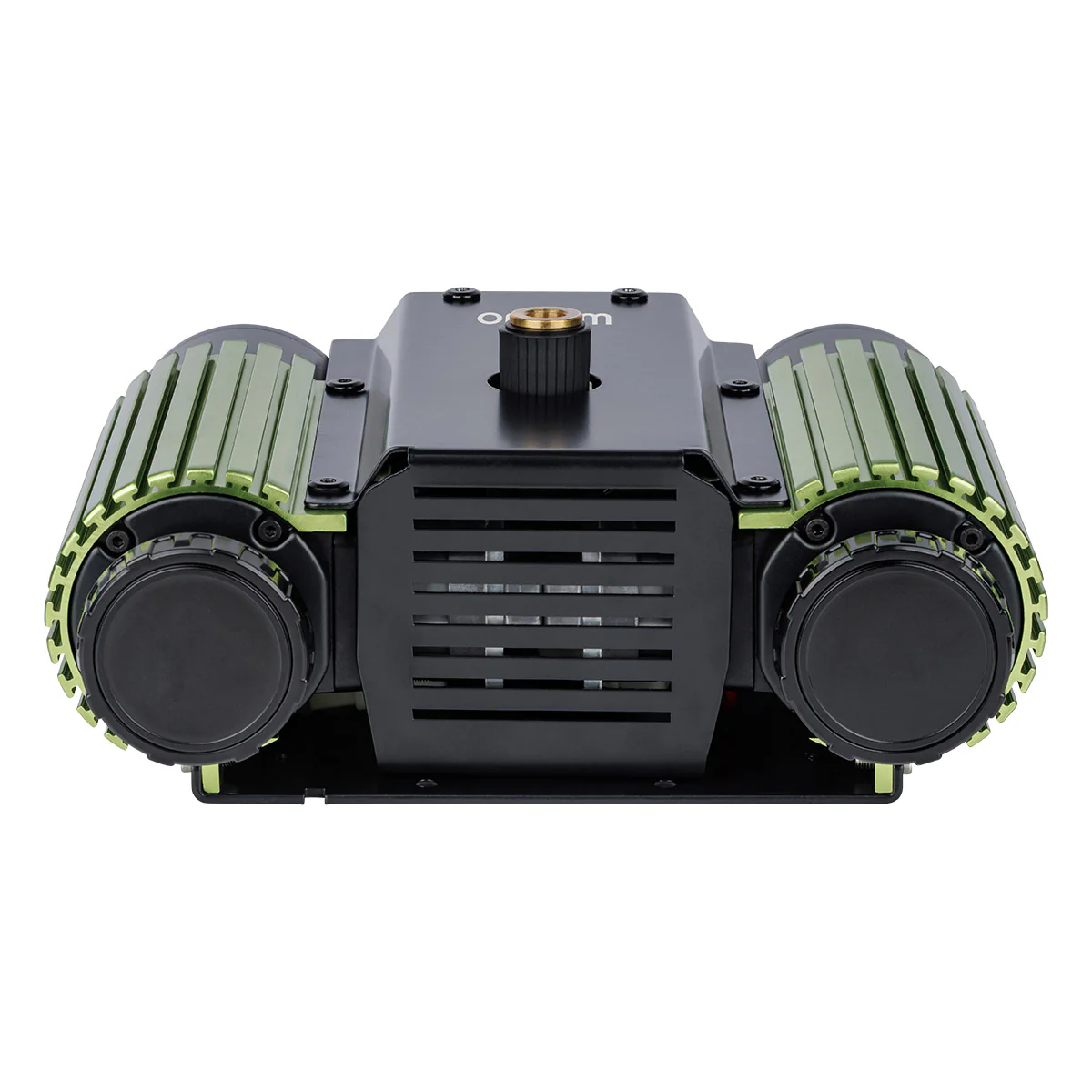

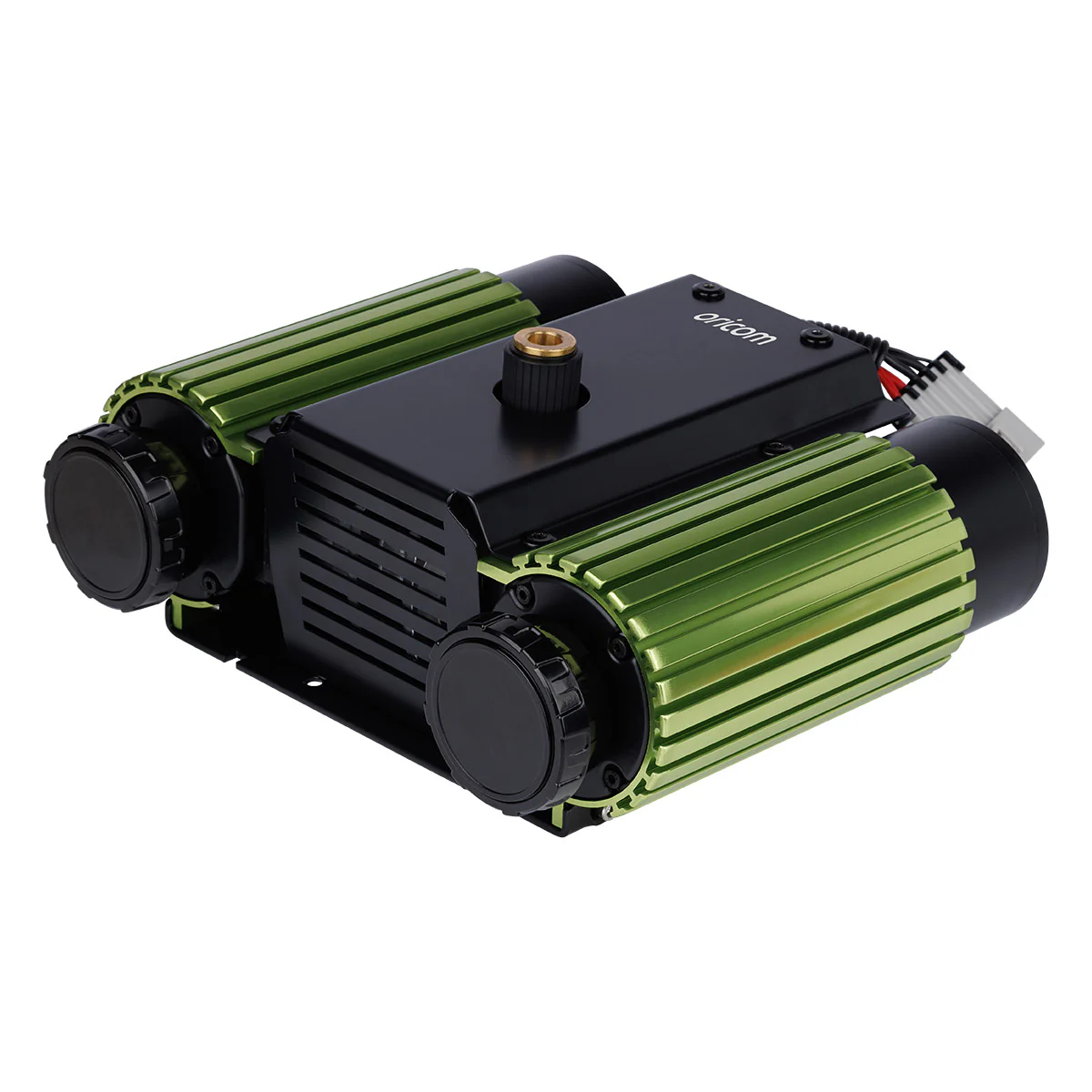

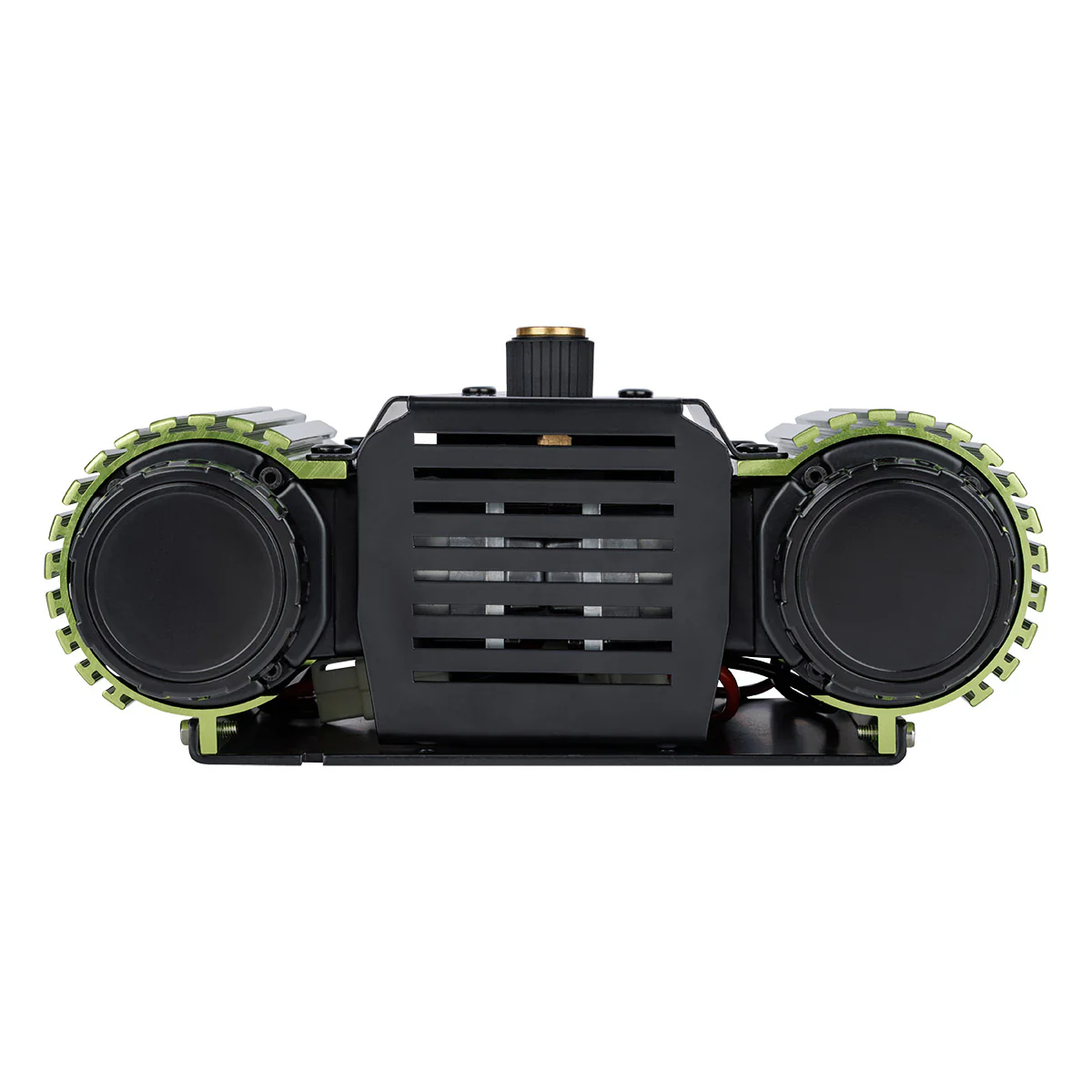

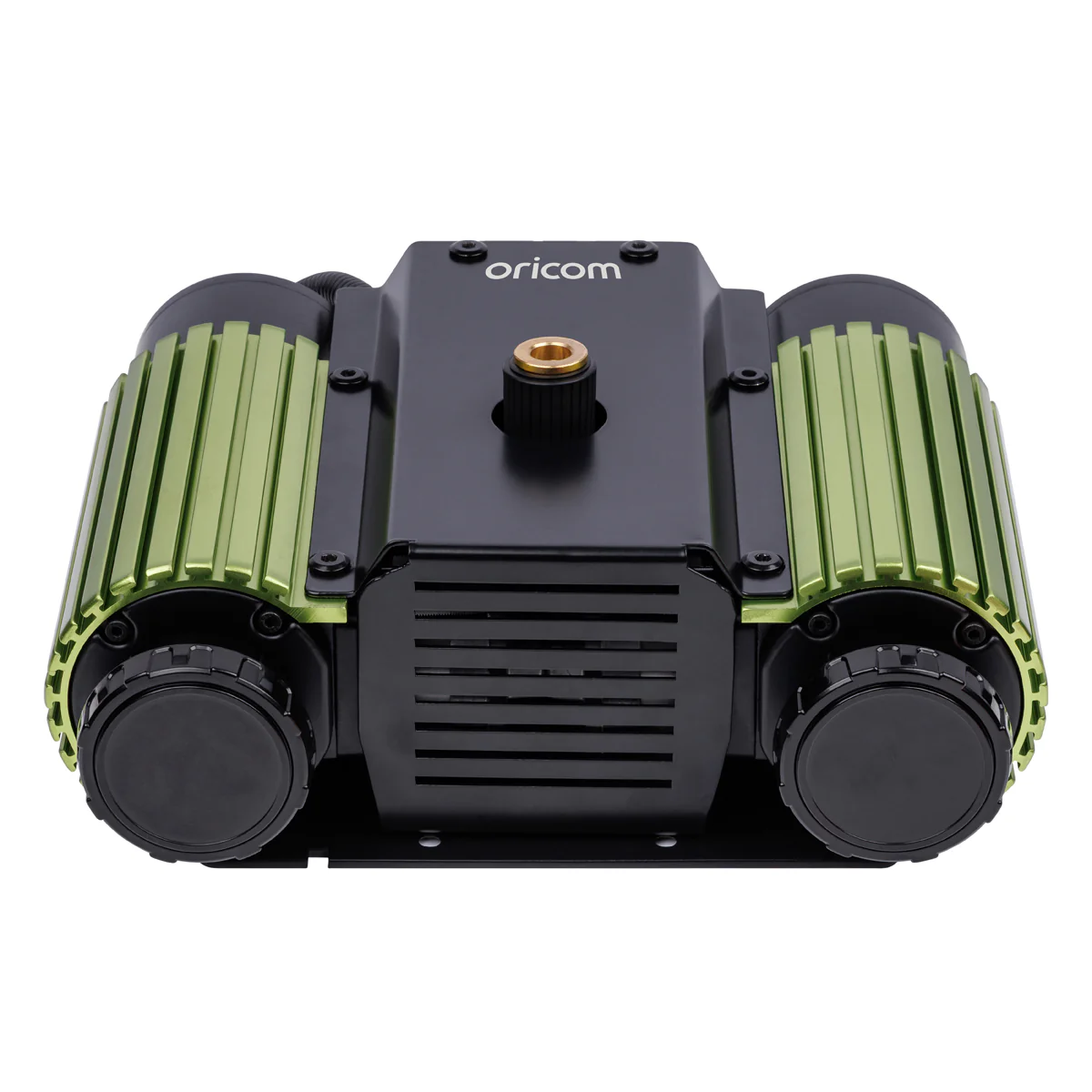

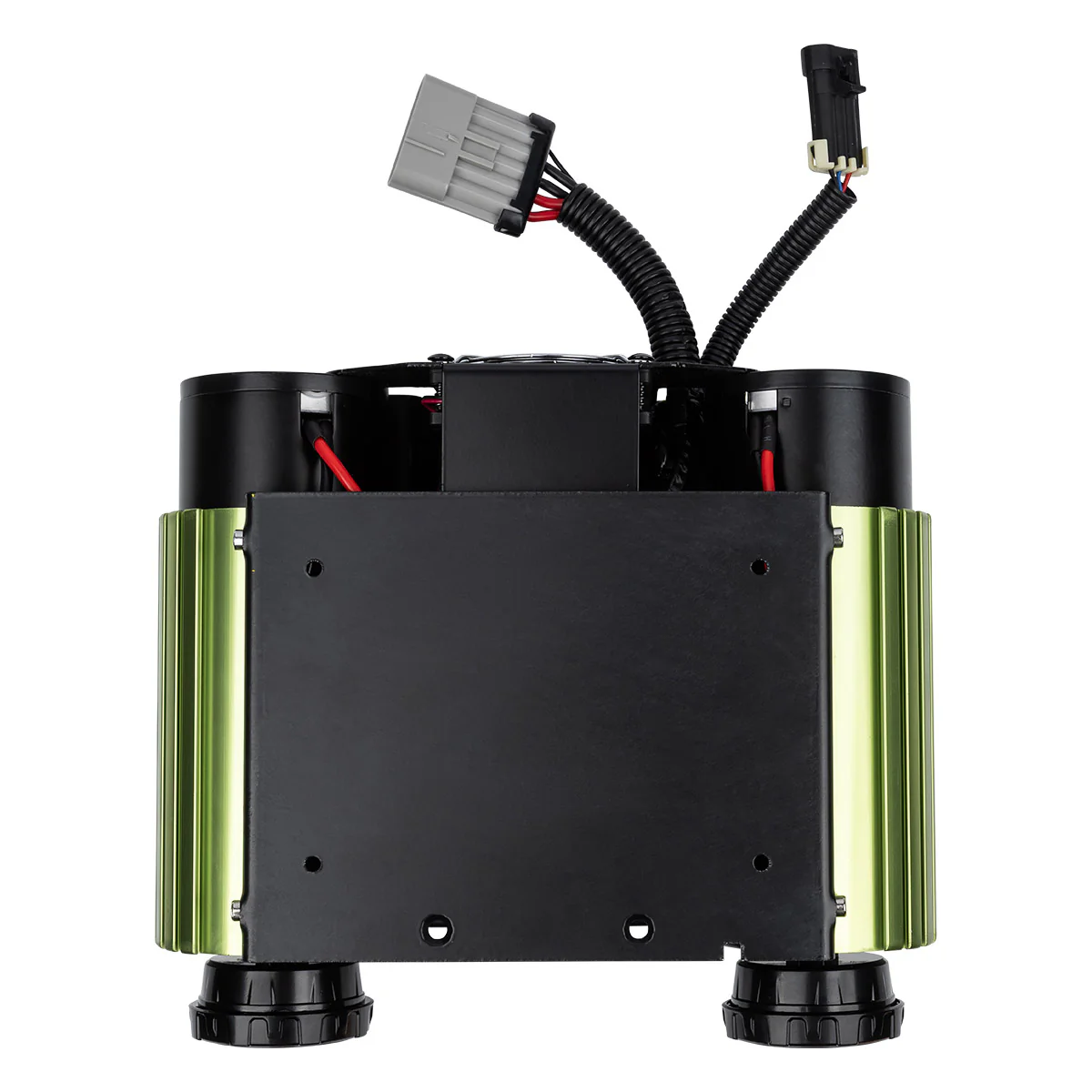

AIR40 Twin Cylinder Air Compressor + Inflation Kit

Key Features:

• High Flow Rates at Various Pressures – Offers a consistent, high flow rate even at different pressure settings, enhancing performance and speed.
• Air Flow Rate of 130L/min (0 PSI) – Rapid inflation even at lower pressures, reducing downtime.
• Thermally Protected Motor –  Prevents overheating during extended use, ensuring long-term durability.

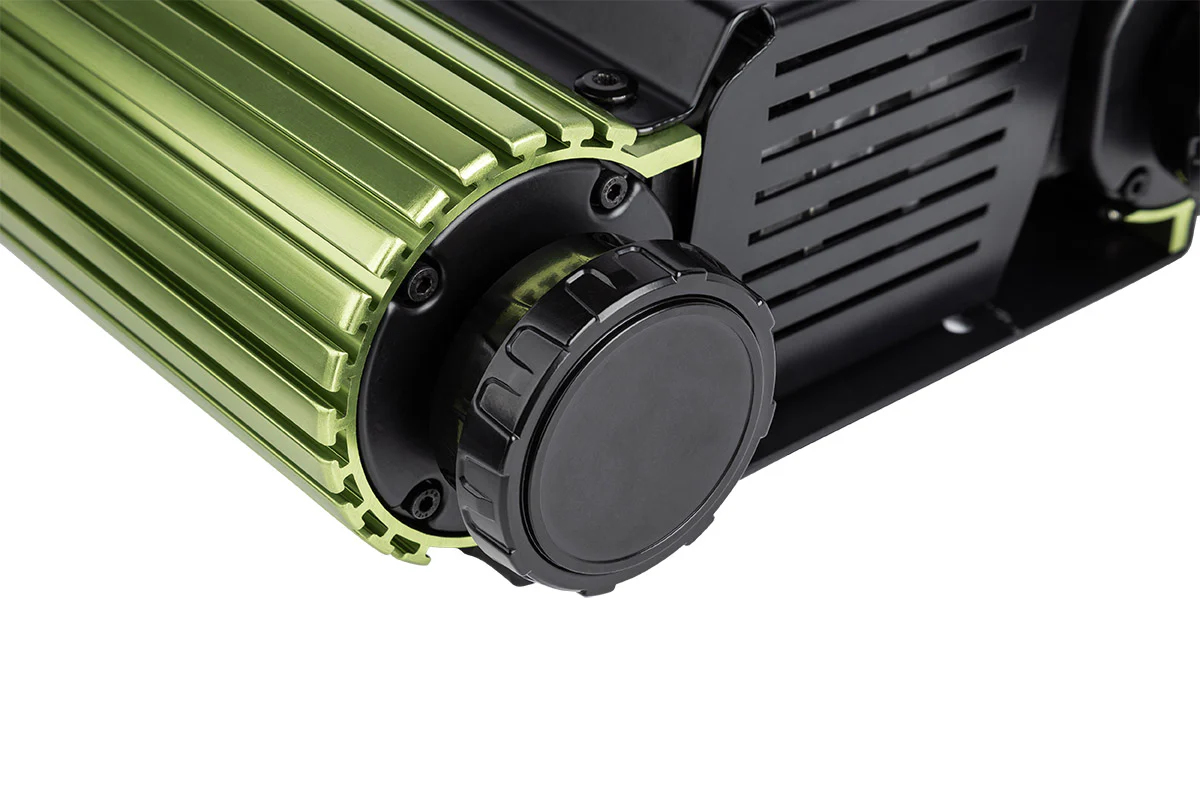

• Washable Air Filter – Reduces maintenance by allowing easy cleaning and reusability.
• Automatic Shut-Off Pressure Switch (150 PSI) (1034kPa) – Safeguards your tyres and compressor by preventing overinflation.
• Max Working Pressure of 150 PSI (1034kPa)– Ensures reliable performance for large vehicle tyres even in demanding situations.

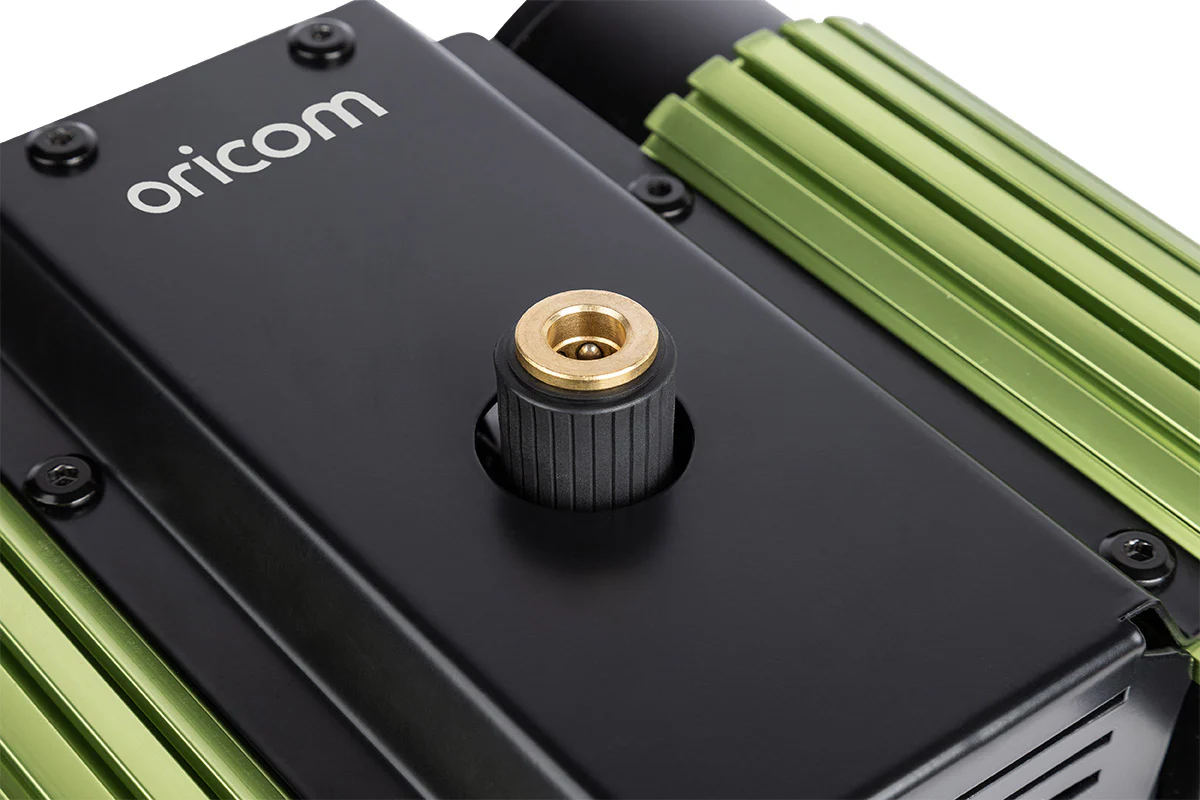

• 6m Hose Length with NPT 1/4" Quick Connect – Provides ample reach for inflating multiple tyres or different vehicles.

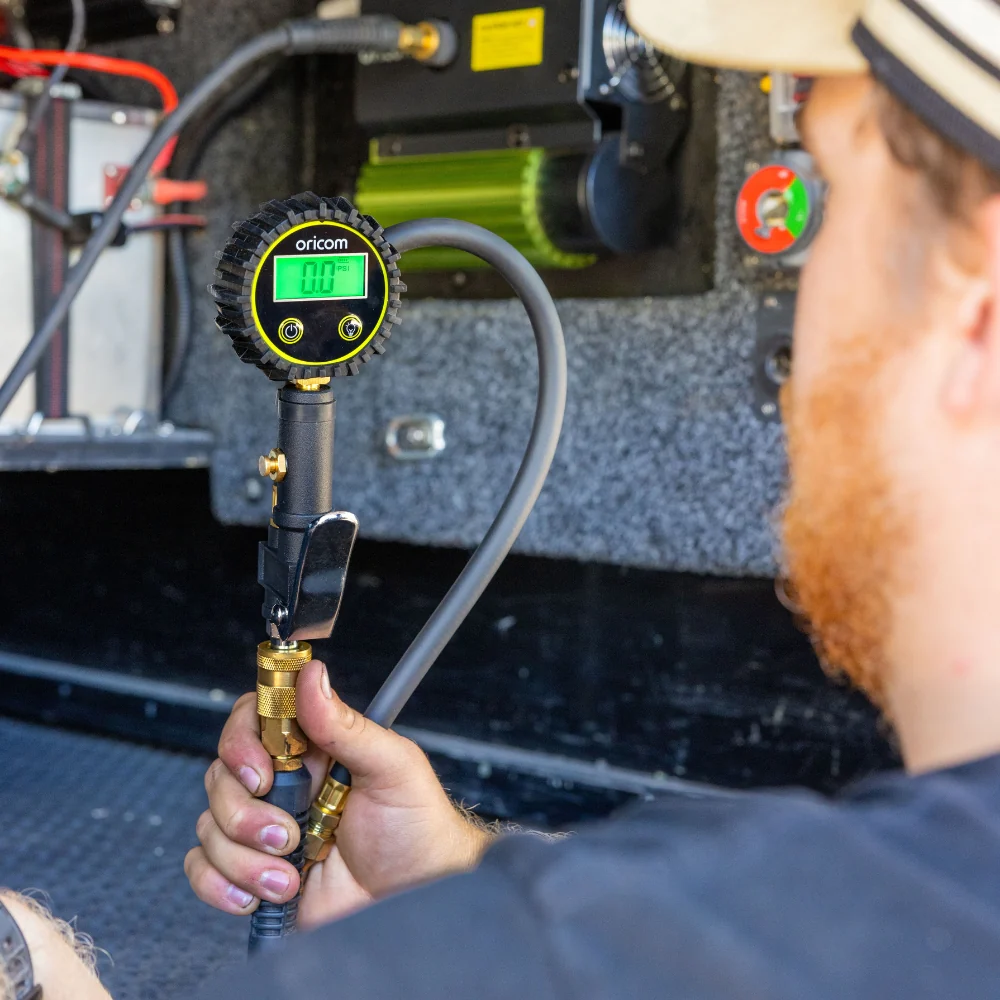

• Compatible with Oricom’s tyre inflator and deflator kits

Specifications:

• Number of Cylinders: 2
• Cylinder Diameter (Bore):  40mm

• Voltage:  12-13.8VDC

• Current Draw Under Load: 62A

• Current Draw No Load: 35A

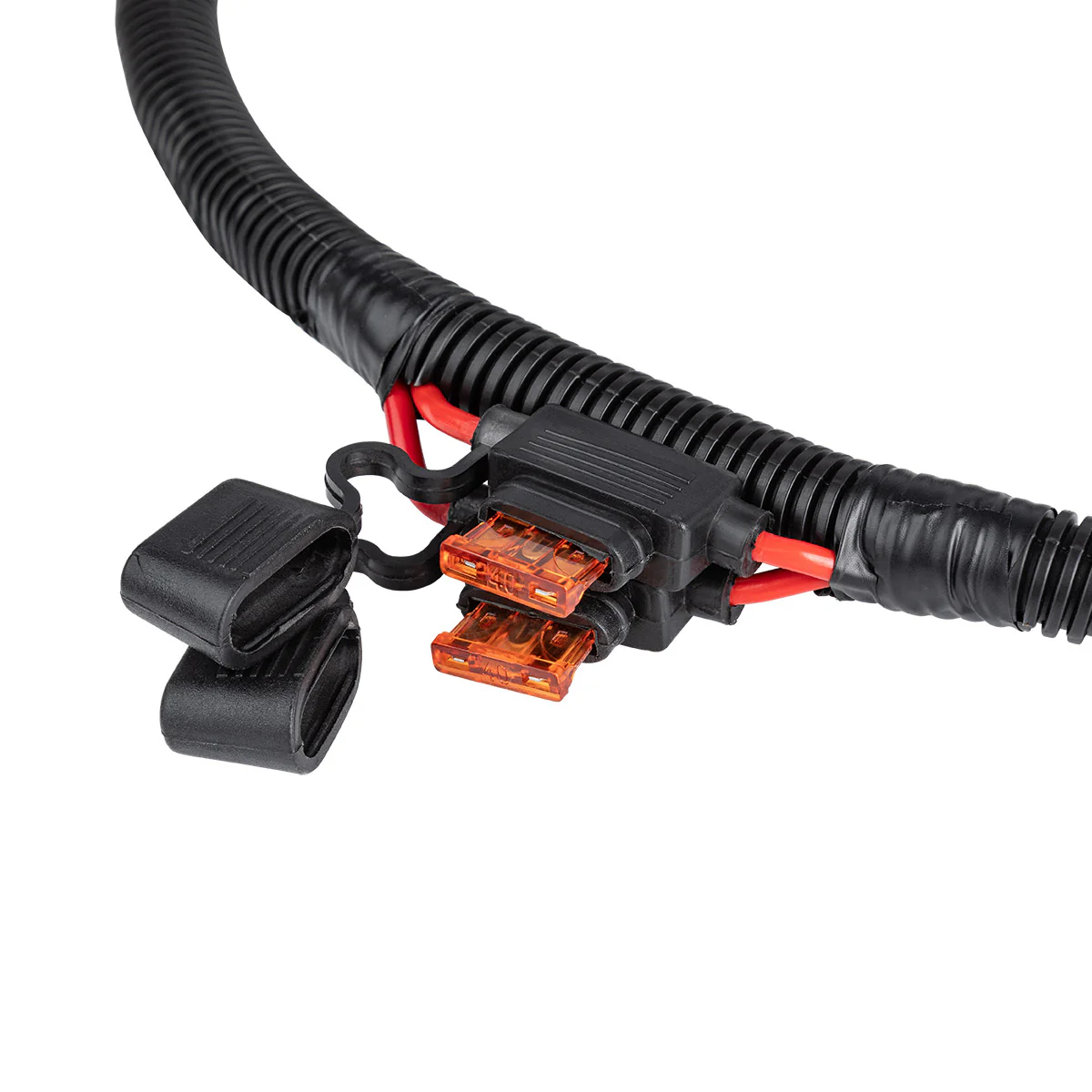

• In line Fuse Supplied: 40A

• Washable Air Filter: Yes

• Max Pressure: 300PSI

• Max Working Pressure: 150PSI (1034kPa)

• Duty Cycle: 100% until thermal cut-out operates

• Air Flow Under Load: 108L/min (40PSI) (276kPa)

• Air Flow Rates: 130 L/min (0PSI) 112 L/min (29PSI) (200kPa)

• Pressure Cutout Switch: Cuts out automatically when 120-150psi pressure reached

• Thermal Protection: Automatically shuts off at 115°C to prevent overheating

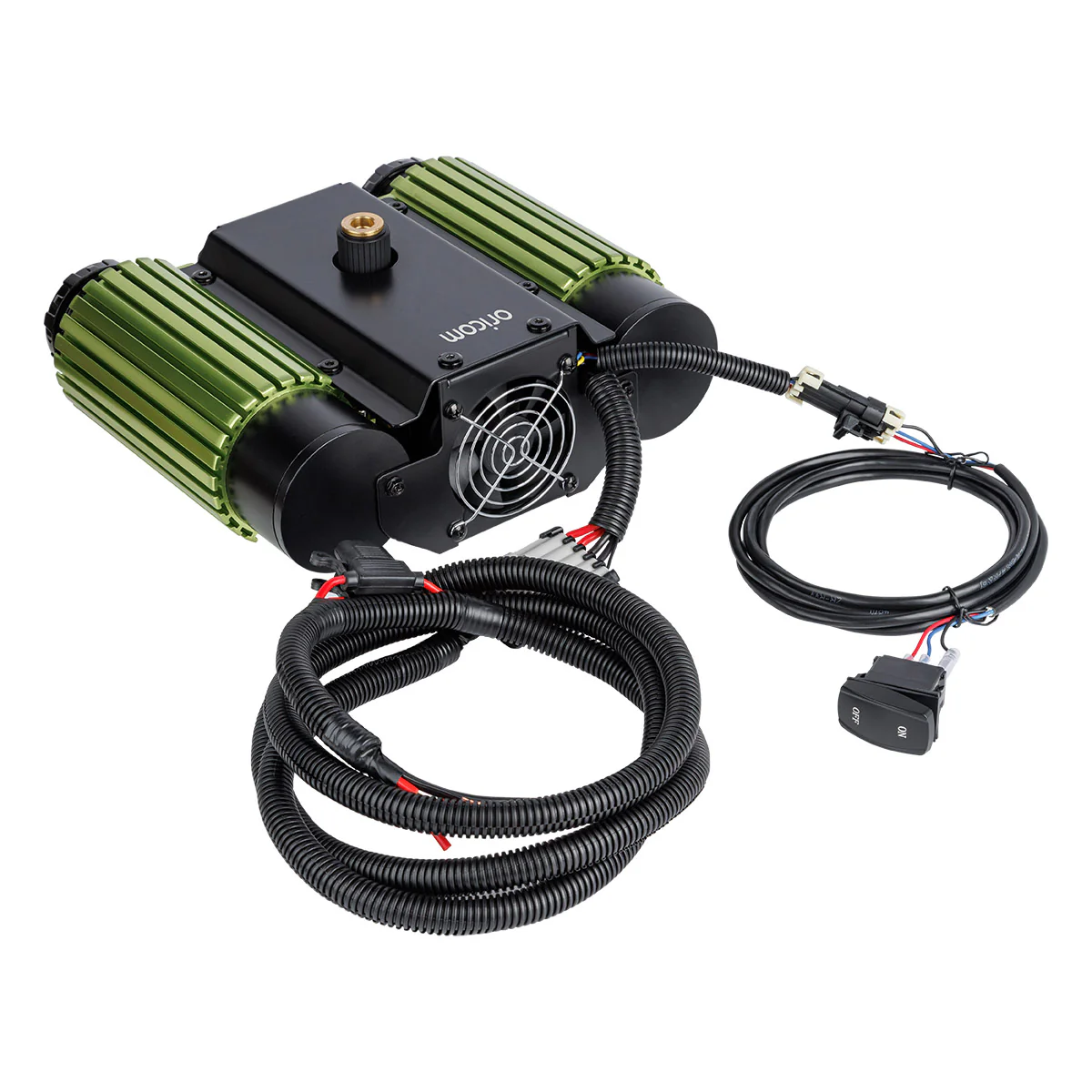

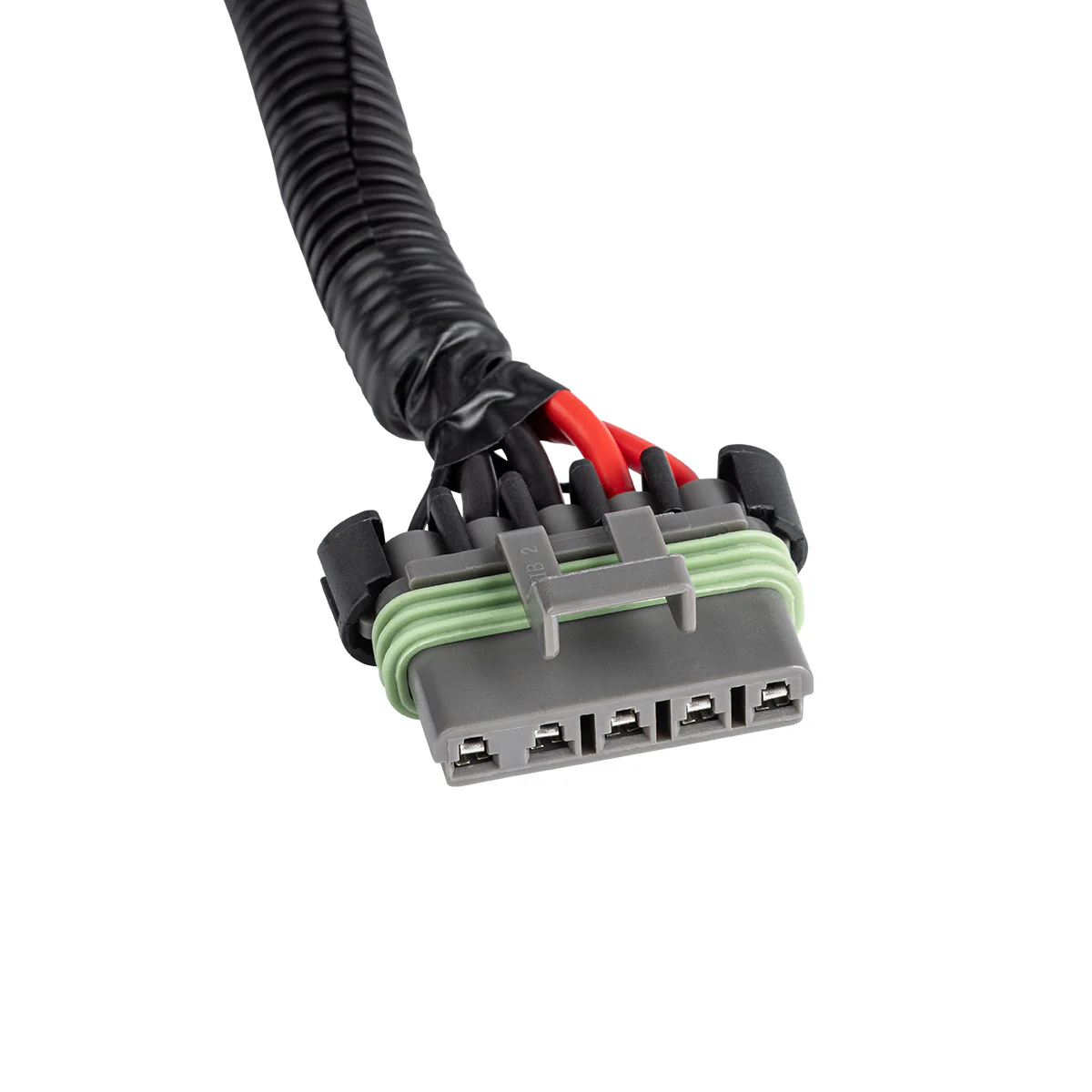

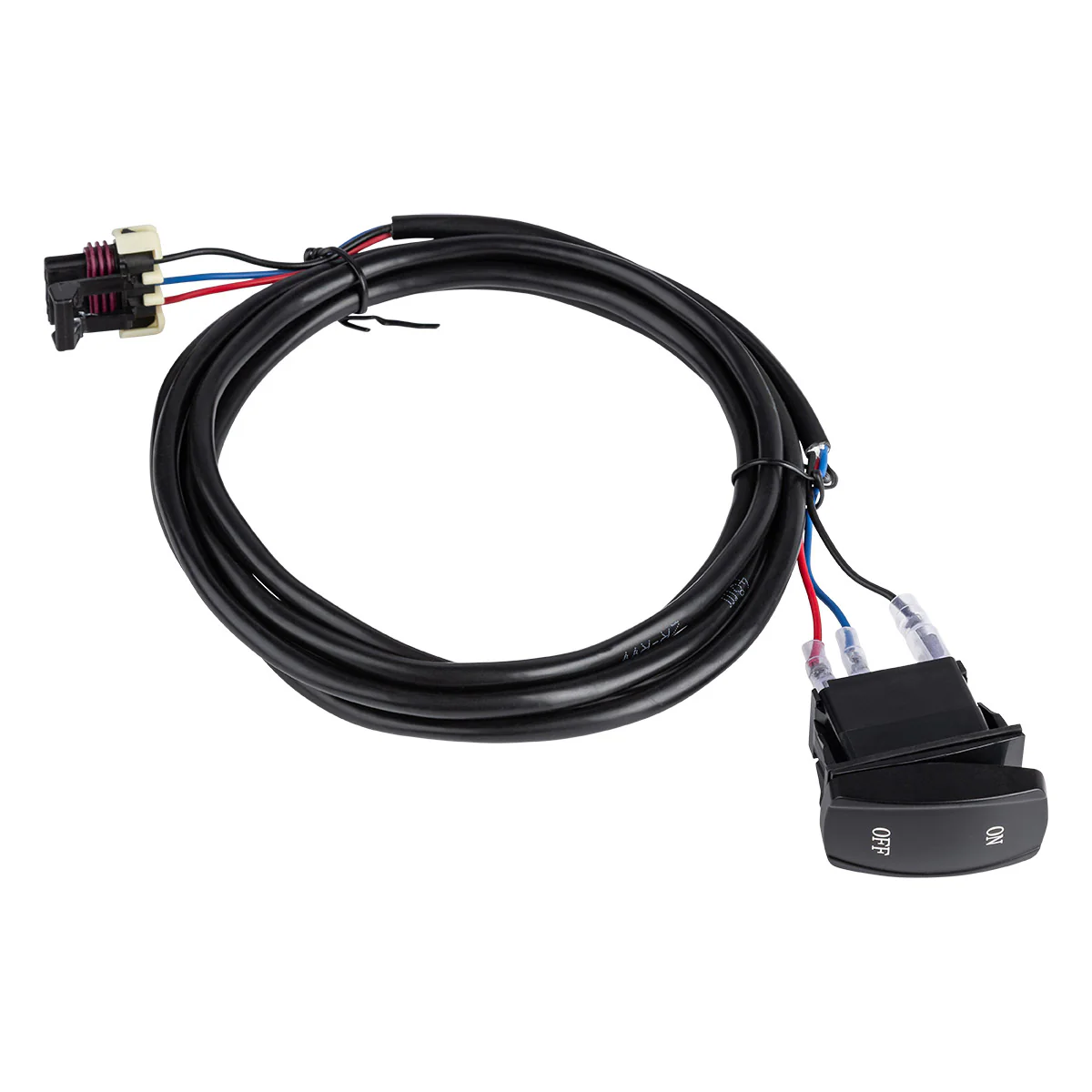

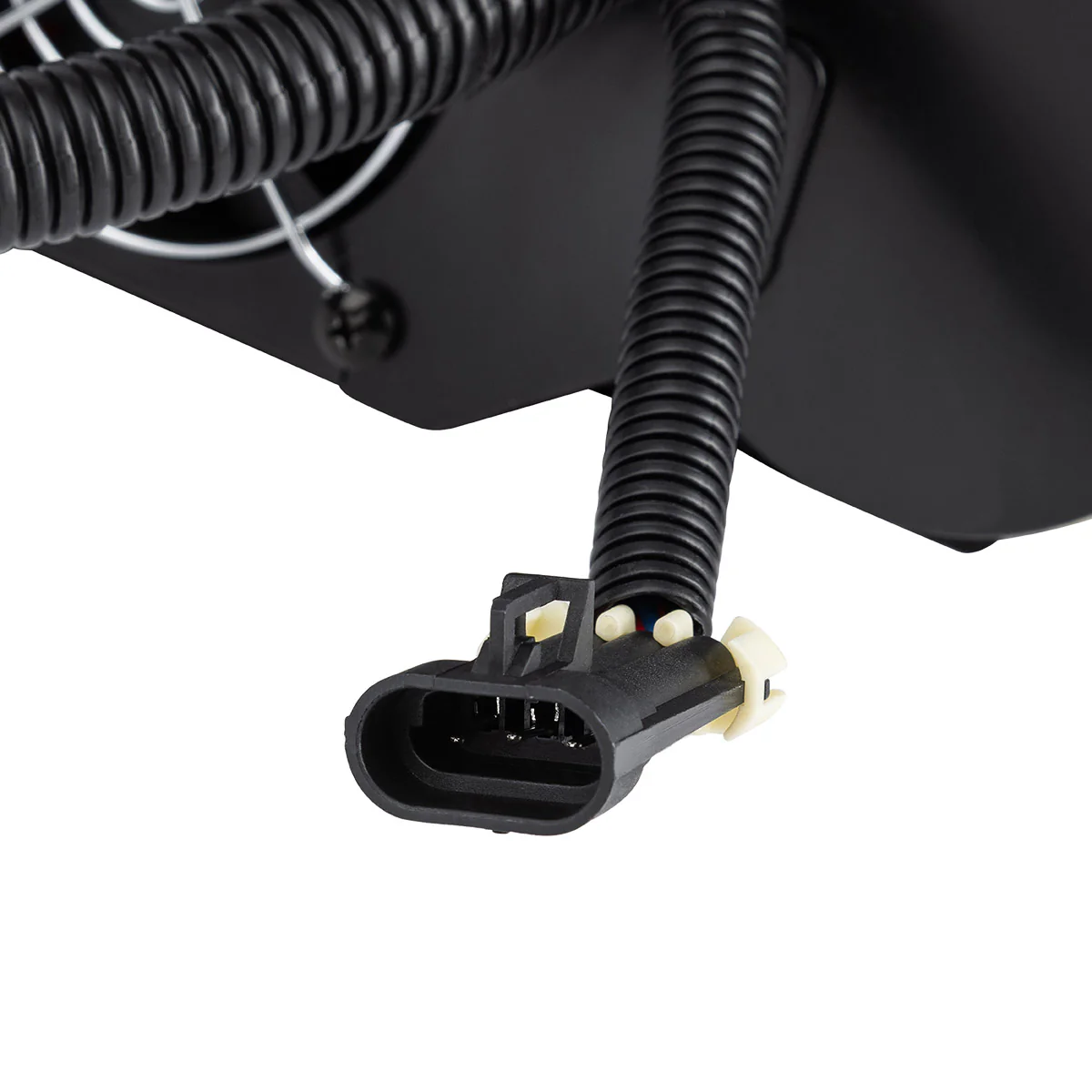

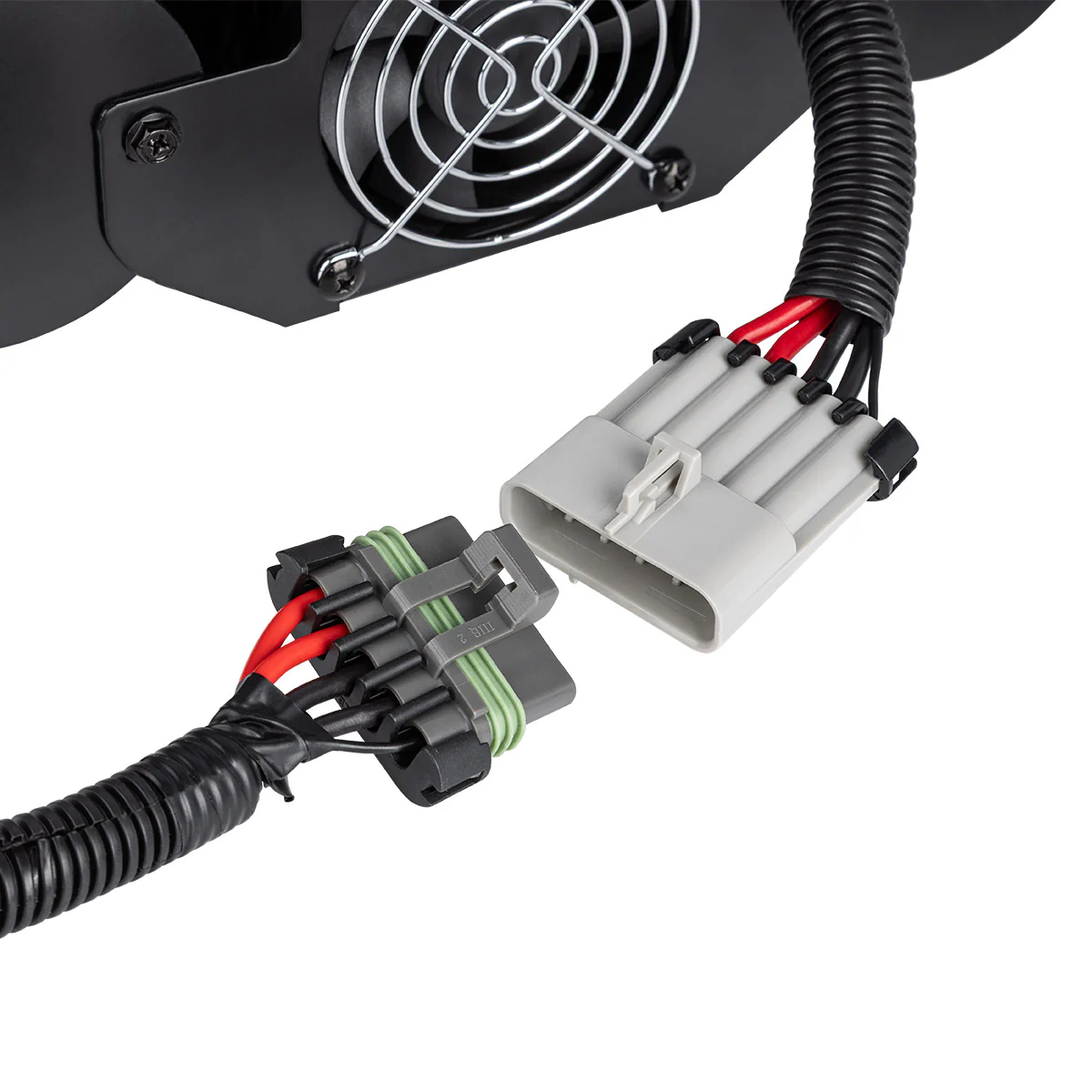

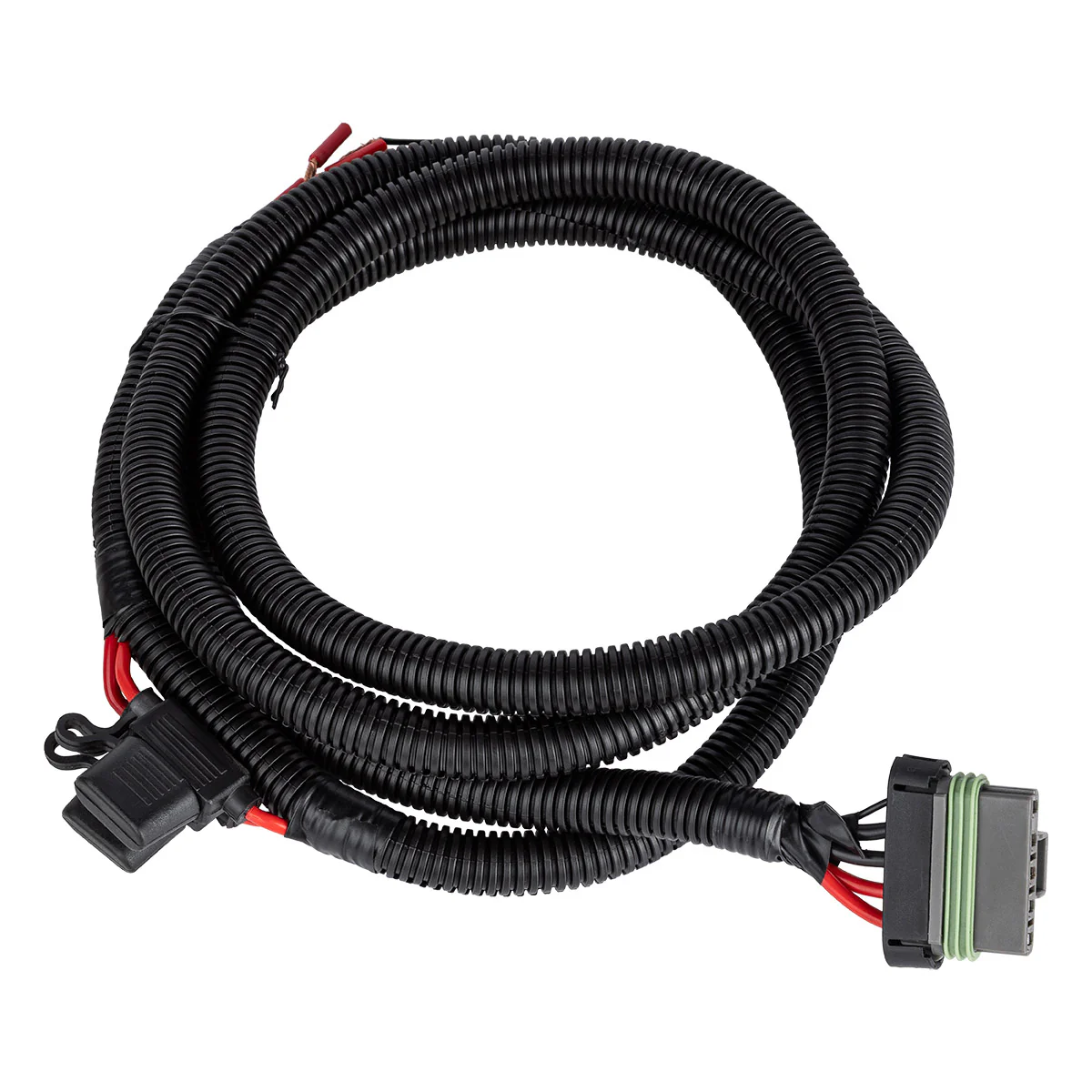

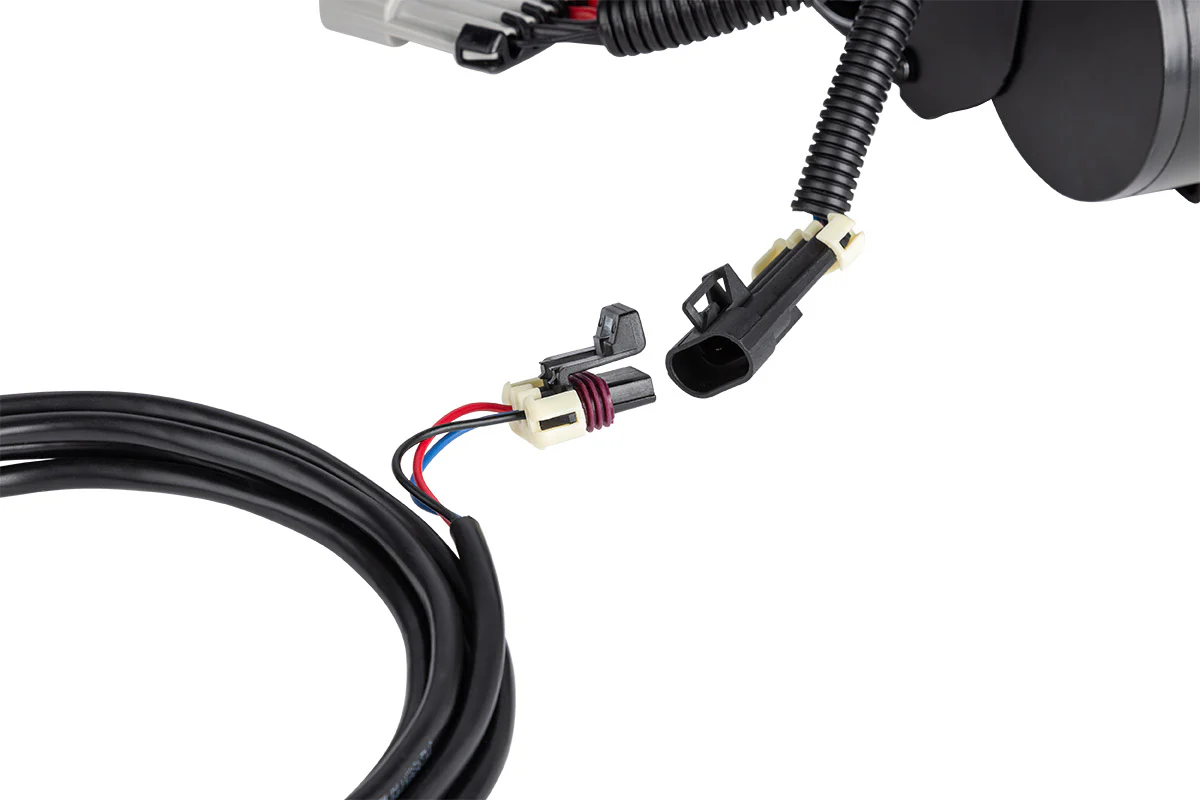

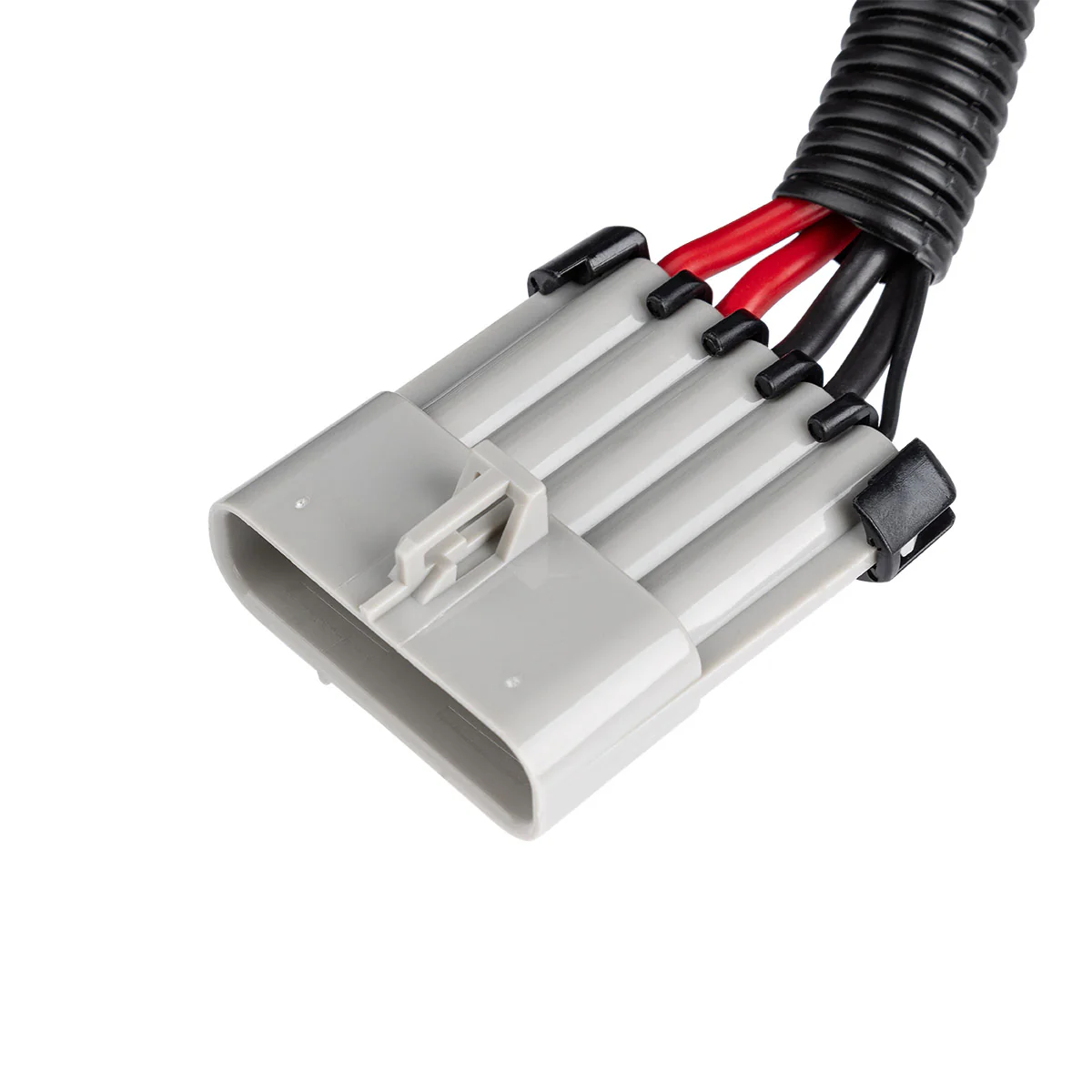

• Connection to Battery: Wiring loom

• Hose Length: 6m

• Hose Connector Type: NPT ¼" Quick Connect

• Product Dimensions (cm): 29x24.5x12

• Weight: 10.2kg

• Warranty: 3 Years


Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 and EMC compliant with EN/IEC 55014-1:2021
